Fit guide
Outdoor fridge under-counter clearance: what to measure

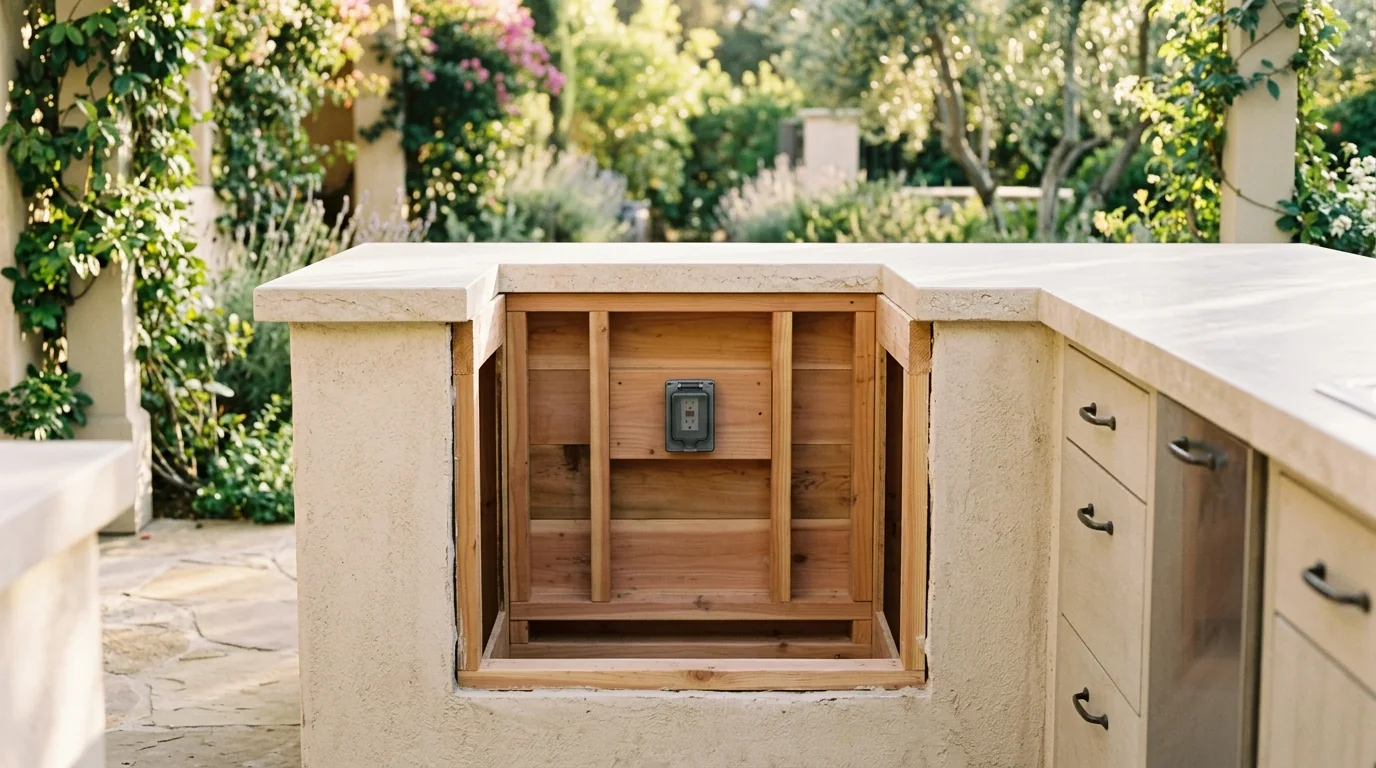

Measure the finished opening you actually have, including the outlet in the back of the void, before choosing a model.
Short answer
A fridge can be sold as a 24 inch model and still fail your outdoor kitchen opening. Measure the finished space, not the plan drawing, and compare it with the real appliance dimensions.
Clearance checklist
| Clearance | Measure this | Why it matters |
|---|---|---|
| Width | Top, middle, bottom | Outdoor islands can be slightly out of square. |
| Depth | Cabinet face to back obstruction | A plug or water line can push the fridge forward. |
| Door path | Handle plus hinge swing | The door still has to open around walls, drawers, and grill handles. |
Cutout worksheet
Write down the real opening and compare it to the product dimensions before you care about capacity. A good worksheet includes opening width at three heights, counter-to-floor height, usable depth to the outlet cover, handle projection, hinge side, and whether the front grille remains fully exposed.
- Outlet pocket — Record how much depth the plug and cover take away.
- Toe-kick grille — Make sure trim does not cover the front exhaust path.
- Leveling feet — Confirm the unit can level under the counter height.
- Pull-out path — Leave room to service or replace the fridge later.
The safest buying rule
For an under-counter patio install, favor an outdoor-rated, front-venting unit with a published cutout range. If the listing only gives the exterior product size, leave extra room and confirm the manufacturer allows built-in use.
Measure after finishes
Stone counters, side trim, tile, leveling feet, and outlet covers can all change the usable opening. Measure the real finished space, then compare against the fridge manual or listing diagram.
Do a cardboard test
Tape out the full appliance depth and handle projection before ordering. This quick test shows whether the door blocks a walkway or hits another appliance.
Common dimension mistakes
| Dimension mistake | Why it happens | How to prevent it |
|---|---|---|
| Fridge sticks proud | Outlet or handle depth was ignored | Measure usable depth with the plug and door handle included. |
| Door only opens halfway | Wall, drawer, or grill handle blocks swing | Tape the door arc on the floor before ordering. |
| Unit runs hot | Front grille covered by trim or toe kick | Keep the grille visible and follow the manual clearance notes. |
Installer questions
Ask where the outlet sits, whether the toe-kick grille stays open, which side the hinge uses, and whether the fridge can be pulled out for service. A pretty built-in install is not useful if it cannot breathe or be repaired.
